QuicRun 1060 Brushed
QuicRun 1060 Brushed
Esc

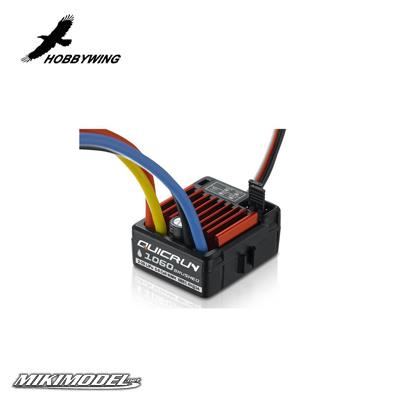

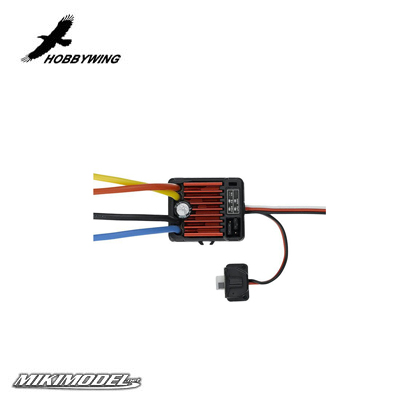

Product information "Hobbywing QuicRun 1060 Brushed ESC 60A for 1:10"
The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.
€ 29,50
browse products
Features
- Water-proof and dust-proof, suitable for all-weather condition races.
- Small size with built-in capacitor module.
- Four running modes to fit various vehicles
- Fwd/Br/Rev
- Fwd/Br
- Fwd/Rev (also called "Crawler Mode")
- (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
- Great current endurance capability.
- Switch mode built-in BEC has powerful output.
- Automatic throttle range calibration, easy to use.
- Easy to set the ESC parameters with jumpers.
- Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.
Technical Specifications
| Fwd. Cont. / Peak Current: |
60A / 360A |
| Rev. Cont. / Peak Current: |
30A / 180A |
| Voltage Range: | 2-3S Lipo or 5-9 NiMH |
| Scale: | 1/10 |
| Application: | Touring Car, Buggy, Short Course Truck Monster, Truggy, Rock Crawler, Tank |
| Motor Limit: | 2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V 3S Lipo or 9 cells NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V |
| BEC Output: | 3A / 6V |
| Plugs: | XT60 |
| Dimensions: | 36.5 x 32 x 18mm |
| Weight: | 39g |
The ESC can be programmed by jumpers.
- Running Mode:
- Fwd/Br/Rev
- Fwd/Br
- Fwd/Rev (Crawler)
- Battery Type: Lipo / NiMH
